Sanitary partitions

Material  |  Options  |  Designs  | Advantage+ | Hardware  |  Success stories

Laboratory work surfaces

Sanitary partitions

Commercial-
grade wall coverings

Handrails

Protective door panels

Squash and
racquetball courts

Custom-
molded components

Material

Designed for use in commercial, industrial and institutional facilities, Decolam sanitary partitions are ideally suited to high-humidity environments such as swimming pools or high-vandalism areas such as prisons, schools or high-traffic public areas.

You can download panel drawings and incorporate them in your own plans and specifications. You will need Stuffit Expander to decompress the BinHex 118-KB Macintosh file, which contains PICT files and Macintosh text. Should you have problems downloading, e-mail us and we'll send you a disk.

The file is also available in IBM PC format. Just e-mail your request.

You can download the technical specifications in PC or Mac text format. Press the CONTROL key (OPTION key on Macintosh) and click on the appropriate link :

> Technical specifications for IBM PCs or compatibles

> Technical specifications for Macintosh or compatibles

Two types of panels

< Solid phenol plastic laminate
Made of multiple layers of phenol-resin coated kraft paper. Sheets are assembled using a special process that results in a highly resistant material. Pressed together under high pressure and intense heat, the layers fuse to form a solid, homogenous, water-tight material that is vandal, oil, mildew and cigarette proof.

Laminated particle board  >
A layer of laminated plastic is hermetically sealed to the particle board. The laminate is made of layers of specially treated kraft paper covered with several coats of phenol resin that bond under high pressure and intense heat. The laminate is then sealed to a 45 lb per cubic foot (720 kg/m³) density particle board. Two-inch (50 mm) wide solid laminate edges prevent moisture penetration and provide added strength for installing hardware and accessories.

Options

Three options are available to suit all needs and budgets.

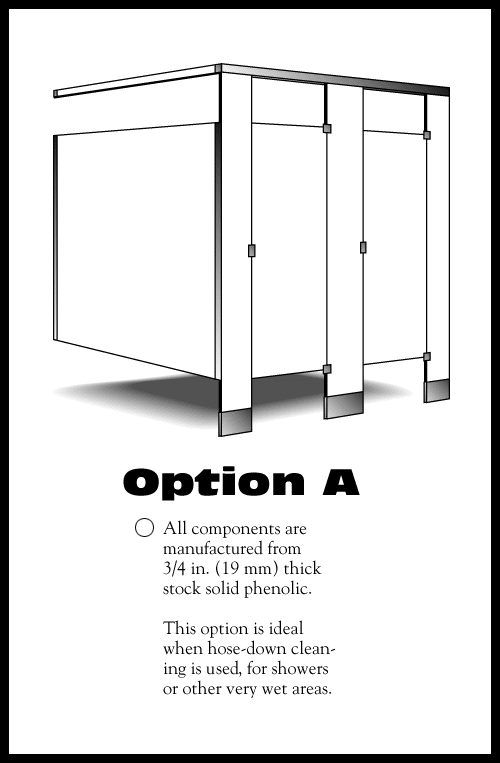

Option A

All partition components are made of ¾ inch (19 mm) solid phenol plastic laminate. Ideally suited when hose-down cleaning is used, for showers or other wet areas.

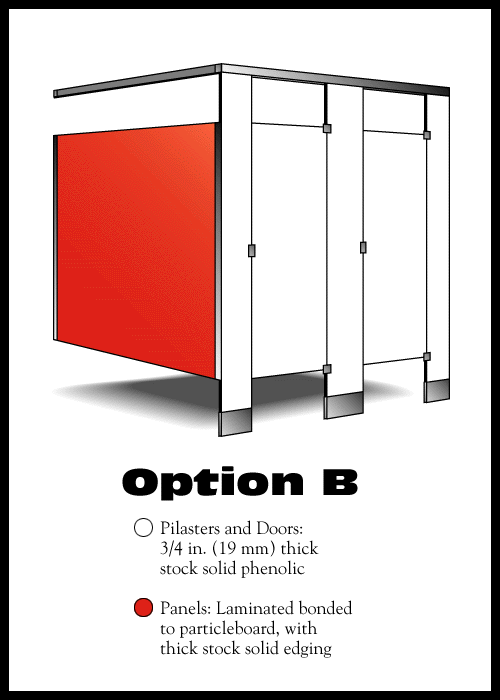

Option B

Pilasters and doors are made of ¾-inch (19 mm) solid phenol plastic laminate while panels are manufactured of laminated particle board and edged with solid plastic laminate.

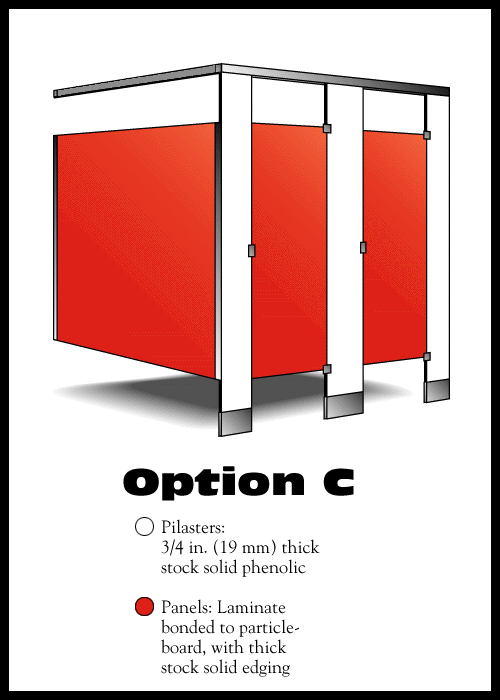

Option C

Pilasters are made of ¾-inch (19 mm) solid phenol plastic laminate while particle board is used for the doors and panels, which are edged with solid laminated plastic.

NOTE: Panels in all options come in a wide variety of colors, patterns and finishes. Waterproof, scratch- and graffiti-resistant, they are easy to assemble and maintain. Our standard partitions meet NFPA, class B and UBC class II fire standards. Fire-resistant partitions can be special ordered.

Designs

Decolam partitions come in four designs, each developed to meet the most exacting standards.

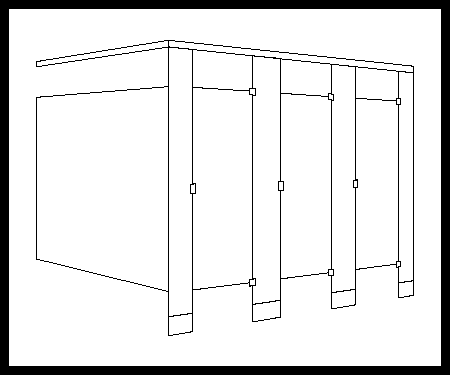

Head-rail braced partitions

• Sturdy, practical structure
• Vandal-proof

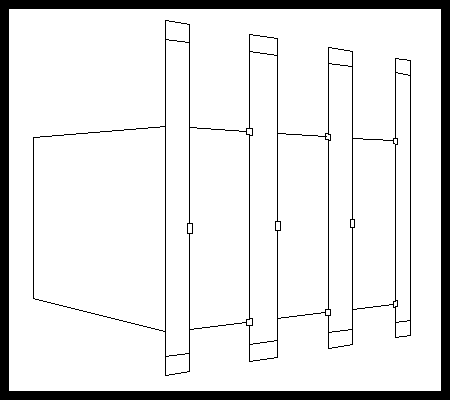

Ceiling-hung partitions

• Obstruction-free floor
• Require structural steel support from another supplier

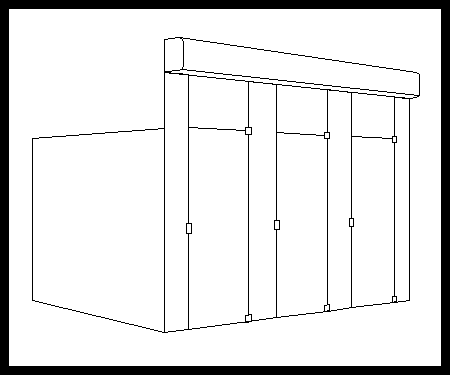

Floor-to-ceiling partitions

• Ideally suited for high-traffic and vandalism-prone areas

Wall-to-wall partitions*

• Obstruction-free floor and ceiling

* A Decolam exclusive.

Without  «Privacy Protector»

With  « Privacy
Protector »

Advantage +

The “Privacy Protector”: for maximum discretion

DECOLAM is proud to introduce a new and improved version of its partition doors for washrooms, bank cubicles, polling booths, fitting rooms, and showers. The new partition features the PRIVACY PROTECTOR—a strip of black polypropylene felt embedded on both sides of the partition door. This innovation completely eliminates any undesirable openings to allow for total privacy.

The Privacy Protector is now available with all DECOLAM washroom partition doors on request. Durable and discreet, it’s a great way to enhance product value.

Once again, DECOLAM leads the way with innovative, quality products designed with the consumer in mind.

Upper Hinge

Lower Hinge

Latch Set

Coat Hook

Hardware

Decolam sells all hardware required to assemble partition components. Parts carry a one-year warranty against manufacturing and material defects, subject to appropriate installation and maintenance, and normal use.

Door hardware

< Hinges: gravity-return movement can be adjusted so door remains partially open; double nylon cam adds strength.

< Latch Set: slide-bolt mechanism; neoprene-coated keeper; designed for in- or out-swinging doors; emergency access mechanism.

< Coat Hook: Comes with a rubber bumper doorstop.

NOTE: Parts are made of chrome-plated Zamac 5 (a corrosion-resistant cast zinc alloy), enabling doors to open either right or left.

Pilaster Saddles >

Made of 18-gauge stainless steel.

Frames and connectors  >

1 1/8" x ¾" (28.6 mm x 19 mm) anodized extruded aluminum are available in custom lengths.

Handicap handle

Pilaster Saddle

Connecter

Success stories

Decolam has proudly contributed to enhancing many construction, interior design and decorating projects. Following is a sample.

Quebec Department of Revenue, Quebec City	Billard Palace, Quebec City	The Inn Restaurant, Warwick, RI
